KSD560RTU
电气特性 Features
| Configuration: | Single |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 100 V |
| Peak DC Collector Current: | 5 A |
| Minimum DC Current Gain: | 2000@3A@2V |
| Maximum Collector Emitter Saturation Voltage: | 1.5@3mA@3A V |
| Maximum Collector Base Voltage: | 150 V |
| Mounting: | Through Hole |
| Rad Hard: | No |
更新于 2026-04-202N6427RLRAG
电气特性 Features
| Configuration: | Single |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 40 V |
| Peak DC Collector Current: | 0.5 A |
| Minimum DC Current Gain: | 10000@10mA@5V|20000@100mA@5V|14000@500mA@5V |
| Maximum Collector Emitter Saturation Voltage: | 1.2@0.5mA@50mA|1.5@0.5mA@500mA V |
| Maximum Collector Base Voltage: | 40 V |
| Mounting: | Through Hole |
| Rad Hard: | No |

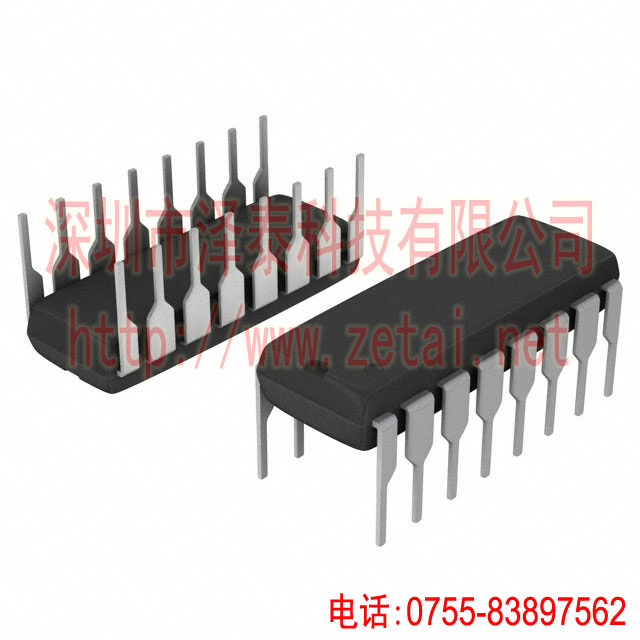

ULN2803APG(O,N,HZA)
电气特性 Features
| Configuration: | Octal Common Emitter |
| Type: | NPN |
| Peak DC Collector Current: | 0.5 A |
| Minimum DC Current Gain: | 1000@350mA@2V |
| Maximum Collector Emitter Saturation Voltage: | 1.6@500uA@350mA|1.3@350uA@200mA|1.1@250uA@100mA V |
| Operating Temperature: | -40 to 85 ℃ |
| Mounting: | Through Hole |
| Rad Hard: | No |
TIP147FTU
电气特性 Features
| Configuration: | Single |
| Type: | PNP |
| Maximum Collector Emitter Voltage: | 100 V |
| Peak DC Collector Current: | 10 A |
| Minimum DC Current Gain: | 500@10A@4V|1000@5A@4V |
| Maximum Collector Emitter Saturation Voltage: | 2@10mA@5A|3@40mA@10A V |
| Maximum Collector Base Voltage: | 100 V |
| Mounting: | Through Hole |
| Rad Hard: | No |
FMBA14
电气特性 Features
| Configuration: | Dual |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 30 V |
| Peak DC Collector Current: | 1.2 A |
| Minimum DC Current Gain: | 10000@10mA@5V|20000@100mA@5V |
| Maximum Collector Emitter Saturation Voltage: | 1.5@0.1mA@100mA V |
| Maximum Collector Base Voltage: | 30 V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
A2982SLW-T
电气特性 Features
| Configuration: | Octal |
| Type: | NPN|PNP |
| Maximum Collector Emitter Voltage: | 50 V |
| Peak DC Collector Current: | 0.5 A |
| Maximum Collector Emitter Saturation Voltage: | 1.8@100mA|1.9@225mA|2@350mA V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
BC517_D74Z
电气特性 Features
| Configuration: | Single |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 30 V |
| Peak DC Collector Current: | 1.2 A |
| Minimum DC Current Gain: | 30000@20mA@2V |
| Maximum Collector Emitter Saturation Voltage: | 1@0.1mA@100mA V |
| Maximum Collector Base Voltage: | 40 V |
| Mounting: | Through Hole |
| Rad Hard: | No |
ZTX603STZ
电气特性 Features
| Configuration: | Single |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 80 V |
| Peak DC Collector Current: | 1 A |
| Minimum DC Current Gain: | 2000@50mA@5V|5000@500mA@5V|2000@1A@5V|500@2A@5V |
| Maximum Collector Emitter Saturation Voltage: | 1@0.4mA@400mA|1@1mA@1A V |
| Maximum Collector Base Voltage: | 100 V |
| Mounting: | Through Hole |
| Rad Hard: | No |
TIP151-S
电气特性 Features
| Configuration: | Single |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 350 V |
| Peak DC Collector Current: | 7 A |
| Minimum DC Current Gain: | 150@2.5A@5V|50@5A@5V|15@7A@5V |
| Maximum Collector Emitter Saturation Voltage: | 1.5@10mA@1A|1.5@100mA@2A|2@250mA@5A V |
| Maximum Collector Base Voltage: | 350 V |
| Mounting: | Through Hole |
| Rad Hard: | No |
MMBTA63-7-F
电气特性 Features
| Configuration: | Single |
| Type: | PNP |
| Maximum Collector Emitter Voltage: | 30 V |
| Peak DC Collector Current: | 0.5 A |
| Minimum DC Current Gain: | 10000@100mA@5V|5000@10mA@5V |
| Maximum Collector Emitter Saturation Voltage: | 1.5@100uA@100mA V |
| Maximum Collector Base Voltage: | 30 V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ULN2002D1013TR
电气特性 Features
| Configuration: | Array 7 |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 50 V |
| Peak DC Collector Current: | 0.5 A |
| Minimum DC Current Gain: | 1000@350mA@2V |
| Maximum Collector Emitter Saturation Voltage: | 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
MC1413BDG
电气特性 Features
| Configuration: | Array 7 |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 50 V |
| Peak DC Collector Current: | 0.5 A |
| Minimum DC Current Gain: | 1000@350mA@2V |
| Maximum Collector Emitter Saturation Voltage: | 1.6@500uA@350mA|1.3@350uA@200mA|1.1@250uA@100mA V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
MJD117T4G
电气特性 Features
| Configuration: | Single |
| Type: | PNP |
| Maximum Collector Emitter Voltage: | 100 V |
| Peak DC Collector Current: | 2 A |
| Minimum DC Current Gain: | 500@0.5A@3V|1000@2A@3V|200@4A@3V |
| Maximum Collector Emitter Saturation Voltage: | 2@8mA@2A|3@40mA@4A V |
| Maximum Collector Base Voltage: | 100 V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ULN2003AS16-13
电气特性 Features
| Configuration: | Array 7 |
| Type: | NPN |
| Maximum Collector Emitter Voltage: | 50 V |
| Peak DC Collector Current: | 0.5 A |
| Maximum Collector Emitter Saturation Voltage: | 1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA V |
| Operating Temperature: | -40 to 105 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |

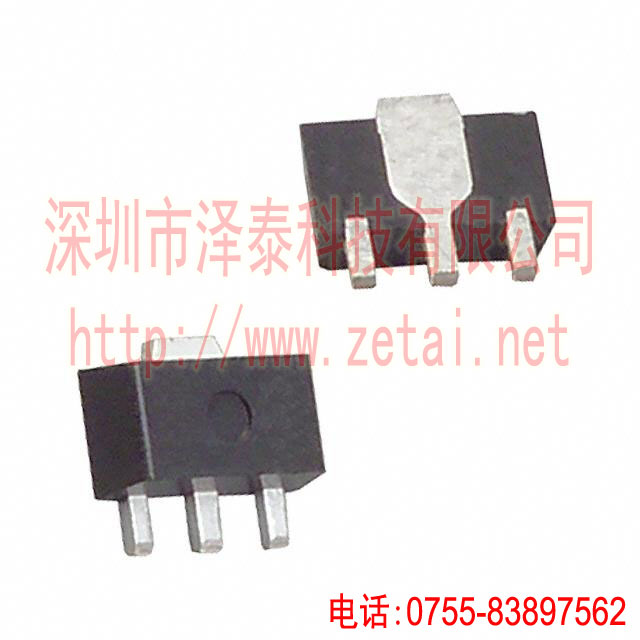

BSP61E6327
电气特性 Features
| Configuration: | Single Dual Collector |
| Type: | PNP |
| Maximum Collector Emitter Voltage: | 60 V |
| Peak DC Collector Current: | 1 A |
| Minimum DC Current Gain: | 1000@150mA@10V|2000@500mA@10V |
| Maximum Collector Emitter Saturation Voltage: | 1.8@1mA@1A|1.3@0.55mA@500mA V |
| Maximum Collector Base Voltage: | 80 V |
| Mounting: | Surface Mount |
| Rad Hard: | No |
