SD05.TCT

电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 14.5 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | 30@HBM kV |
| Maximum Working Voltage: | 5 V |
| Maximum Leakage Current: | 10 uA |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 125 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ESD7381MUT5G
电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 10 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | ±20@Air Gap/±20@Contact Disc kV |
| Maximum Working Voltage: | 3.3 V |
| Maximum Leakage Current: | 0.05 uA |
| Minimum Operating Temperature: | -40 ℃ |
| Maximum Operating Temperature: | 125 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ESDU5V0K4
电气特性 Features
- 类型: 开关二极管
- Pd = 350mW
- Io = 150mA
- Vr = 75V
- Vf = 1.25V
- Ir = 1uA
- Trr = 4ns
- 内部电路图:

更多相似二极管产品参数说明表
PESD12VL1BA,115

电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Bi-Directional |
| Maximum Clamping Voltage: | 37 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | 30@Contact Disc/10@HBM kV |
| Maximum Working Voltage: | 12 V |
| Maximum Leakage Current: | 0.05 uA |
| Capacitance Value: | 19 pF |
| Minimum Operating Temperature: | -65 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
SM4T15CAY

电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Bi-Directional |
| Maximum Clamping Voltage: | 13.4 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | 30@Air Gap/30@Contact Disc kV |
| Maximum Working Voltage: | 5.8 V |
| Maximum Leakage Current: | 500 uA |
| Minimum Operating Temperature: | -40 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
PJSMF36LC-R2-00001

电气特性 Features
| Type: | TVS |
| Configuration: | Array 5 |
| Pin Count: | 6 |
| Direction Type: | Bi-Directional |
| Maximum Clamping Voltage: | 50 V |
| Number of Elements per Chip: | 5 |
| ESD Protection Voltage: | 20@Air|15@Contact Disc|25@HBM kV |
| Maximum Working Voltage: | 36 V |
| Maximum Leakage Current: | 0.5 uA |
| Capacitance Value: | 25 pF |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
PESD5V0L1UA,115

电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 12 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | 30@Contact Disc/10@HBM/0.4@MM kV |
| Maximum Working Voltage: | 5 V |
| Maximum Leakage Current: | 0.1 uA |
| Capacitance Value: | 30 pF |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
MMBZ6V8AL,215

电气特性 Features
| Type: | TVS |
| Pin Count: | 3 |
| Direction Type: | Uni-Directional|Bi-Directional |
| Maximum Clamping Voltage: | 9.6 V |
| Number of Elements per Chip: | 2 |
| ESD Protection Voltage: | 30@Contact Disc/2@MM kV |
| Maximum Working Voltage: | 4.5 V |
| Maximum Leakage Current: | 0.3 uA |
| Capacitance Value: | 200 pF |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
D5V0L2B3SO-7

电气特性 Features
| Type: | TVS |
| Pin Count: | 3 |
| Direction Type: | Bi-Directional |
| Maximum Clamping Voltage: | 14 V |
| Number of Elements per Chip: | 4 |
| ESD Protection Voltage: | ±30@Air Gap/±30@Contact Disc kV |
| Maximum Working Voltage: | 5 V |
| Maximum Leakage Current: | 0.1 uA |
| Capacitance Value: | 20 pF |
| Minimum Operating Temperature: | -65 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
SM2T6V8A
电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 9.2 V |
| Number of Elements per Chip: | 1 |
| Maximum Working Voltage: | 5 V |
| Maximum Leakage Current: | 50 uA |
| Capacitance Value: | 1600(Typ) pF |
| Minimum Operating Temperature: | -65 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ESD9L3.3ST5G
电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 9 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | ±15@Air Gap/±10@Contact Disc kV |
| Maximum Working Voltage: | 3.3 V |
| Maximum Leakage Current: | 1 uA |
| Capacitance Value: | 0.9 pF |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 125 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
ESD7004AMUTAG

电气特性 Features
| Type: | TVS |
| Configuration: | Quad |
| Pin Count: | 10 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 15.6 V |
| Number of Elements per Chip: | 4 |
| ESD Protection Voltage: | ±15@Air Gap|±15@Contact Disc kV |
| Maximum Working Voltage: | 5 V |
| Maximum Leakage Current: | 1 uA |
| Capacitance Value: | 0.5 pF |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 125 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
PESD3V3L5UF,115
电气特性 Features
| Type: | TVS |
| Pin Count: | 6 |
| Direction Type: | Uni-Directional |
| Maximum Clamping Voltage: | 12 V |
| Number of Elements per Chip: | 5 |
| ESD Protection Voltage: | 20@Contact Disc/10@HBM kV |
| Maximum Working Voltage: | 3.3 V |
| Maximum Leakage Current: | 0.3 uA |
| Capacitance Value: | 28 pF |
| Minimum Operating Temperature: | -65 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |

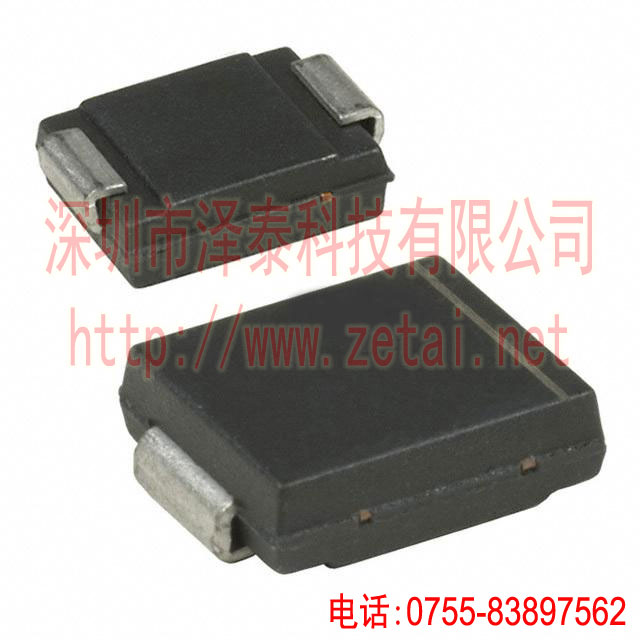

SM15T15CAY

电气特性 Features
| Type: | TVS |
| Pin Count: | 2 |
| Direction Type: | Bi-Directional |
| Maximum Clamping Voltage: | 32.4 V |
| Number of Elements per Chip: | 1 |
| ESD Protection Voltage: | 30@Air Gap/30@Contact Disc kV |
| Maximum Working Voltage: | 20 V |
| Maximum Leakage Current: | 0.2 uA |
| Minimum Operating Temperature: | -55 ℃ |
| Maximum Operating Temperature: | 150 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |

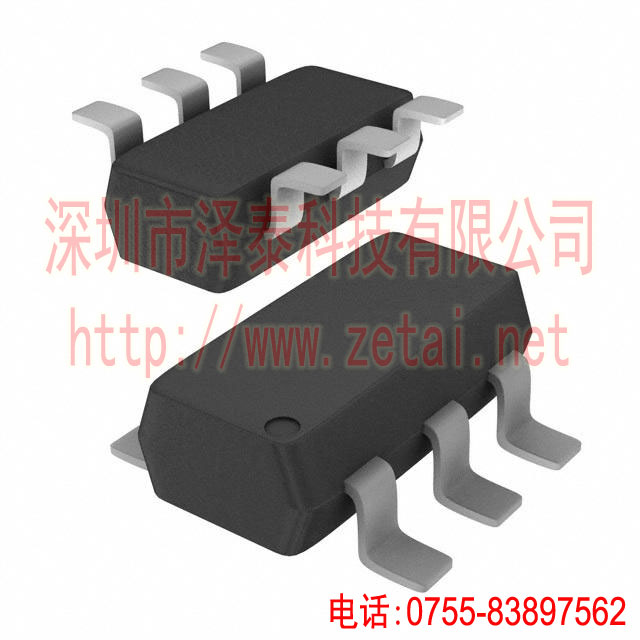

ESDA6V1-4BC6

电气特性 Features
| Type: | TVS |
| Pin Count: | 6 |
| Direction Type: | Bi-Directional |
| Number of Elements per Chip: | 4 |
| ESD Protection Voltage: | 15@Air Gap/8@Contact Disc kV |
| Maximum Working Voltage: | 3 V |
| Maximum Leakage Current: | 1 uA |
| Capacitance Value: | 45(Typ) pF |
| Minimum Operating Temperature: | -40 ℃ |
| Maximum Operating Temperature: | 125 ℃ |
| Mounting: | Surface Mount |
| Rad Hard: | No |
